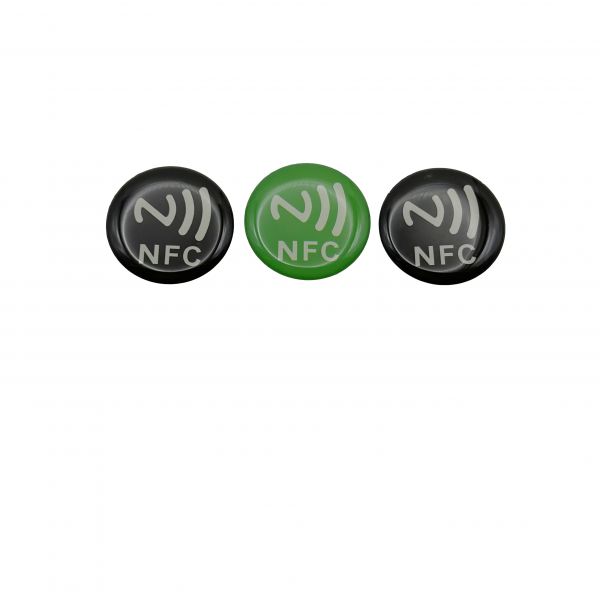

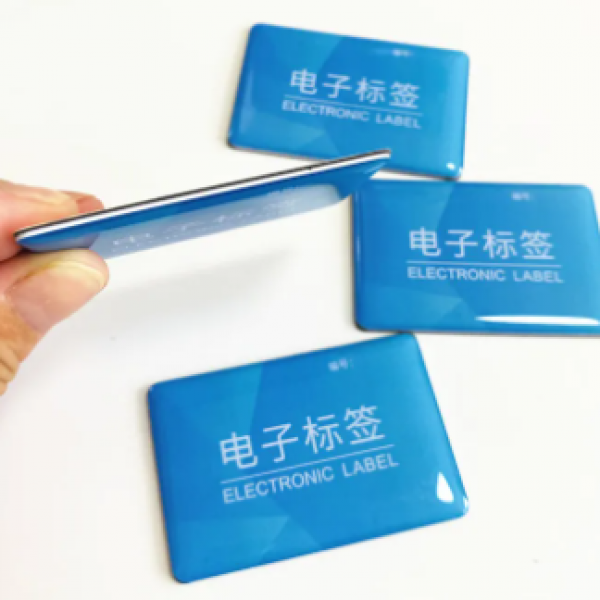

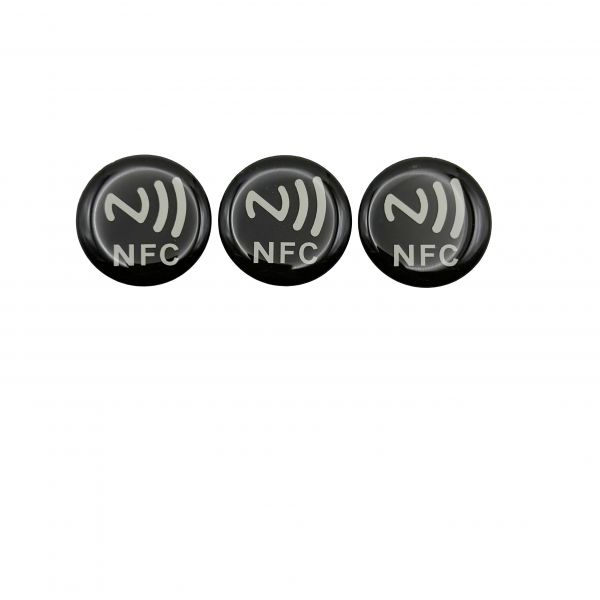

HF Epoxy On-Metal Tag
Description
| Product details | |
| Item | HF Epoxy On-Metal Tag |
| Material | PVC/PET+ Anti-metal layer+ Epoxy finishing |
| Size: | 18x18mm/ 20x20mm/ Dia25mm/ 25x25mm/ 30x15mm/ 40x15mm/ customized etc. |
| Available chip | Ntag213/215/216, MF1S50(S50), F08, I Code Sli series, or customized |
| Frequency | 13.56MHz |
| Protocol | ISO15693/ ISO14443A |
| Memory | 144byte,1Kbyte,128byte, etc. |
| Write Cycles | 100000 |
| Operating temperature / humidity | -40~70℃/20%~90% RH |
| Storage temperature / humidity | -20~50℃ / 20%~90% RH(Without condensation). |
| Read Range | 3-15 cm depend on reader and tag size |
| Application | Access Control, Payment, Ticketing, Data Transfer, Membership Management, etc. |
