UHF PCB On-Metal Tag
860-960Mhz UHF RFID PCB Tag On Metal CL7203E series anti-metal tag RFID on metal tag
Description
| Product details | |
| Item | UHF PCB On-Metal Tag |
| Material | FR4 (PCB) |
| Size: | 80*50*3mm |
| Available chip | Impinj M4QT ( Can customize tag with different UHF chips) |
| Frequency | US 902-928MHz, EU 865-868MHz |
| Memory | EPC 128bits User 496bits |
| Read/write | Yes (EPC and User) |
| Data Retention | Up to 50 Years |
| Storage humidity | 5%～95% |

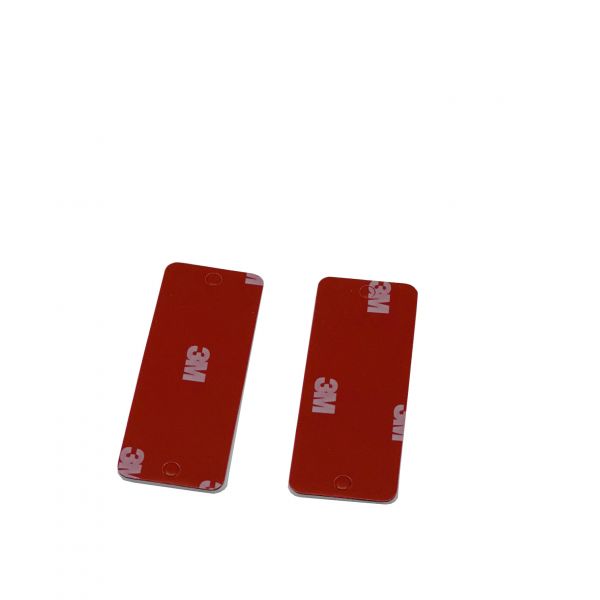

| Installation Method | Screw, Rivet, Glue, or 3M300LSE tape (standard) |
| Drop Test | 1 meters high, 200 drop test passed |
| Alcohol test | 95% alcohol test passed |
| Gasoline test | Passed |
| High & low temperature shock test | -40 ℃ ~ +150℃, 7 cycles, total 48 hours |
| Temperature cycle test | -40℃～+120℃, 7 times cycle time testing, 48 hours total |
| Read Range (On Metal) | 1-10m, depending on the tag size and reader power |
| Application | Warehousing & Logistic, Tool management, Car tracking, Warehousing shelf, Hospital asset management, etc. |
